Troubleshooting Blocked Log Entries for Legitimate Connec- tion Packets

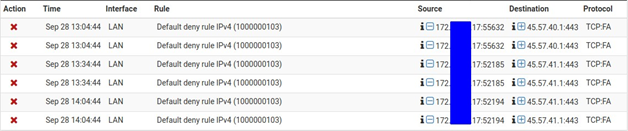

Sometimes log entries will be present that, while labeled with the “Default deny” rule, look like they belong to legitimate traffic. The most common example is seeing a connection blocked involving a web server.

This is likely due to a TCP FIN packet arriving after firewall has removed the connection state. This happens because on occasion a packet will be lost, and the retransmits will be blocked because the firewall has already closed the connection. Another possible reason for the messages is if a packet arrived too slowly and was outside of its expected arrival window. It can also happen when web servers attempt to reuse connections.

In each case, the log entries are harmless and do not indicate a blocked connection. All stateful firewalls do this, though some do not generate log messages for this blocked traffic even if all blocked traffic is logged.

These blocked packets will occur even if rules exist which look as though they should match the traffic, such as an “Allow All” rule. Pass rules for TCP only allow TCP SYN packets to create a state. These rules assume TCP traffic with other flags will either be part of an existing state in the state table, or packets with spoofed TCP flags.
